Slapping some filler on a foundation crack is just a temporary patch, not a real solution. To fix it right, you first need to understand why the crack appeared and then use the correct professional technique to seal it for good. The process usually involves cleaning the crack, installing injection ports, and using either a flexible polyurethane foam for leaks or a rigid epoxy for structural repairs to seal it from the inside out. When you get this right, you’re not just patching a wall—you’re protecting your home’s value and its structural integrity.
How to Assess Cracks in Your Foundation
Before you think about repairs, the first and most important step is a thorough assessment. Spotting a crack in your foundation can be unnerving, but not all of them mean your house is in serious trouble. As professionals working across the GTA, we’ve seen everything from harmless settlement cracks to major structural failures. Figuring out what you're looking at is the key to a lasting fix.
The goal here is to get to the bottom of why the crack exists. Is it just a cosmetic issue, or is it a warning sign of a bigger problem like shifting soil or intense hydrostatic pressure? A proper diagnosis from the start saves you from spending money on a repair that doesn’t solve the underlying problem.
Distinguishing Between Minor and Major Issues
The most common cracks we see in Toronto basements are thin vertical or diagonal ones. These are often just hairline cracks that appear as the concrete cures and shrinks—a normal part of a new home settling. While they might not be a structural threat, they create a perfect pathway for water, dampness, and even soil gases like radon to seep into your home.
Then there are the cracks that should set off alarm bells. If you find a horizontal crack, it’s a strong indicator that pressure from soil and water outside is causing your foundation walls to bow inward. This is a serious structural issue that needs a professional opinion, fast.
To help you get a quick read on the situation, here’s a simple breakdown of the common culprits.
A Quick Guide to Foundation Crack Types
Use this table to quickly identify the type of foundation crack in your basement and understand its potential severity.
| Crack Type | What It Looks Like | Common Cause | Severity Level |
|---|---|---|---|
| Vertical Hairline | A very thin, straight crack running up the wall. | Concrete curing and normal settlement. | Low |
| Diagonal | Runs at an angle, often wider at one end. | Differential settlement (one side sinks faster). | Moderate |
| Horizontal | Runs parallel to the floor across the wall. | Hydrostatic pressure or soil pressure. | High |
| Stair-Step | Follows the mortar joints in a block foundation. | Wall bowing or uneven settling. | Moderate to High |
This table is a great starting point, but a visual inspection will tell you even more.
What to Look For During Your Inspection
When you’re looking at a crack, go beyond just its direction. Is it wider than a couple of millimetres? Does it seem to be getting bigger? An easy way to check is to mark the ends with a pencil and write down the date. Come back in a few weeks and see if it has grown.
Also, keep an eye out for these secondary clues:
- Water Stains: Look for dark discolouration or a white, chalky powder (called efflorescence) around the crack. That’s a clear sign that water has been coming through.
- Sticking Doors or Windows: If doors and windows on the floors above the crack are suddenly hard to open or close, it could mean your foundation is shifting significantly.
- Uneven Floors: A floor that noticeably slopes is a classic sign of foundation settlement that requires an expert evaluation.
As you look into the cracks in your foundation, it’s helpful to get familiar with some of the industry language, like understanding the term 'fissure'. Knowing the terms helps you have a more productive conversation with a contractor, so you can be confident you understand their diagnosis and the solution they’re proposing.
Choosing the Right Foundation Repair Method
Once you've identified what kind of crack you're dealing with, you’ve reached the most critical part of the job: picking the right repair method. This is where many DIY repairs go wrong. It's tempting to just slap a rigid patch over a crack, but that’s a classic mistake that completely ignores the natural movement of your home.
In the professional world, the choice almost always comes down to two highly effective injection methods. The key thing to understand is that they are not interchangeable. Each one is designed for a specific purpose, and getting it wrong means you’ll be patching that same crack again in a year or two.
Polyurethane Foam for Leaking Cracks
For those common vertical or diagonal cracks that are letting water seep into your basement, flexible polyurethane foam injection is the industry standard. It helps to think of your foundation as something that is always in subtle motion, expanding and contracting with temperature changes and soil moisture.
Polyurethane foam is engineered to handle this movement. When injected into a crack, it expands to fill every tiny void, then cures into a flexible, rubber-like seal.
The real advantage of polyurethane is its flexibility. When your foundation shifts during the freeze-thaw cycles we get here in the GTA, the foam seal moves right along with it. This ensures the crack stays waterproof for good. A rigid patch would simply re-crack under the same pressure.
This method is the ideal solution for stopping active leaks and preventing new ones. Better yet, it’s a clean, fast repair that can be done entirely from inside your basement—no need for disruptive and expensive excavation outside.
Epoxy Injection for Structural Repairs
Now, if your assessment pointed to a more serious structural issue—like a wide, shifting diagonal crack from settlement or a horizontal crack signalling a bowing wall—then rigid epoxy injection is the only correct choice. Here, the goal isn't just to block water; it's to make the concrete wall whole again.
Epoxy is essentially an industrial-strength glue. When injected, it penetrates deep into the crack and cures into a solid material that is often stronger than the original concrete. This process effectively welds the two sides of the crack back together, restoring the wall's structural integrity.
Because it creates such an unyielding bond, epoxy is used strictly for cracks where structural reinforcement is the top priority. Using it on a simple leaking crack would be overkill and wouldn't provide the flexibility needed for a lasting watertight seal. For a deeper dive, our guide on the top 3 materials for repairing a cracked foundation offers more detail.
When More Intensive Solutions are Needed
Sometimes, an injection alone isn’t the answer because the crack is just a symptom of a much larger problem. If your home is experiencing significant and ongoing settlement, you might be looking at a more substantial solution like underpinning. This process involves digging out sections beneath your existing foundation and extending it deeper into the ground to rest on more stable soil.
Underpinning is a major construction project reserved for serious foundational shifts. It’s the ultimate fix when the ground beneath your home can no longer support its weight, providing a permanent solution to stabilize your house. This is precisely why a professional assessment is so vital—it ensures the fix truly matches the scale of the problem.
A Look at the Professional Crack Injection Process
When you hire a professional for a foundation crack, you're not just buying a tube of sealant. You're investing in a meticulous, proven process. A proper crack injection is all about the details, and skipping a step or using cheap materials is a surefire way to see that same leak reappear.
This isn't a DIY guide. Think of it as a look behind the curtain. When you understand what a high-quality, warrantied repair involves, you can spot professional workmanship and ask the right questions when a contractor is in your home. It’s the best way to ensure the job is done right the first time.
Laying the Groundwork: Preparing the Surface for a Permanent Bond
The first thing any experienced technician will do is prepare the wall. This is a critical step that amateurs often rush, but it's non-negotiable for a lasting fix. The area around the crack must be thoroughly cleaned with a wire brush to remove any loose concrete, dust, paint, or efflorescence—the chalky white residue you sometimes see where water has been present.
Why is this so important? A clean, solid surface is absolutely essential for the epoxy surface seal to grip the concrete and create an unbreakable bond. If that bond fails, the injection material can simply ooze out before it cures, making the entire repair useless. It's a small detail that makes all the difference between a temporary patch and a permanent solution.

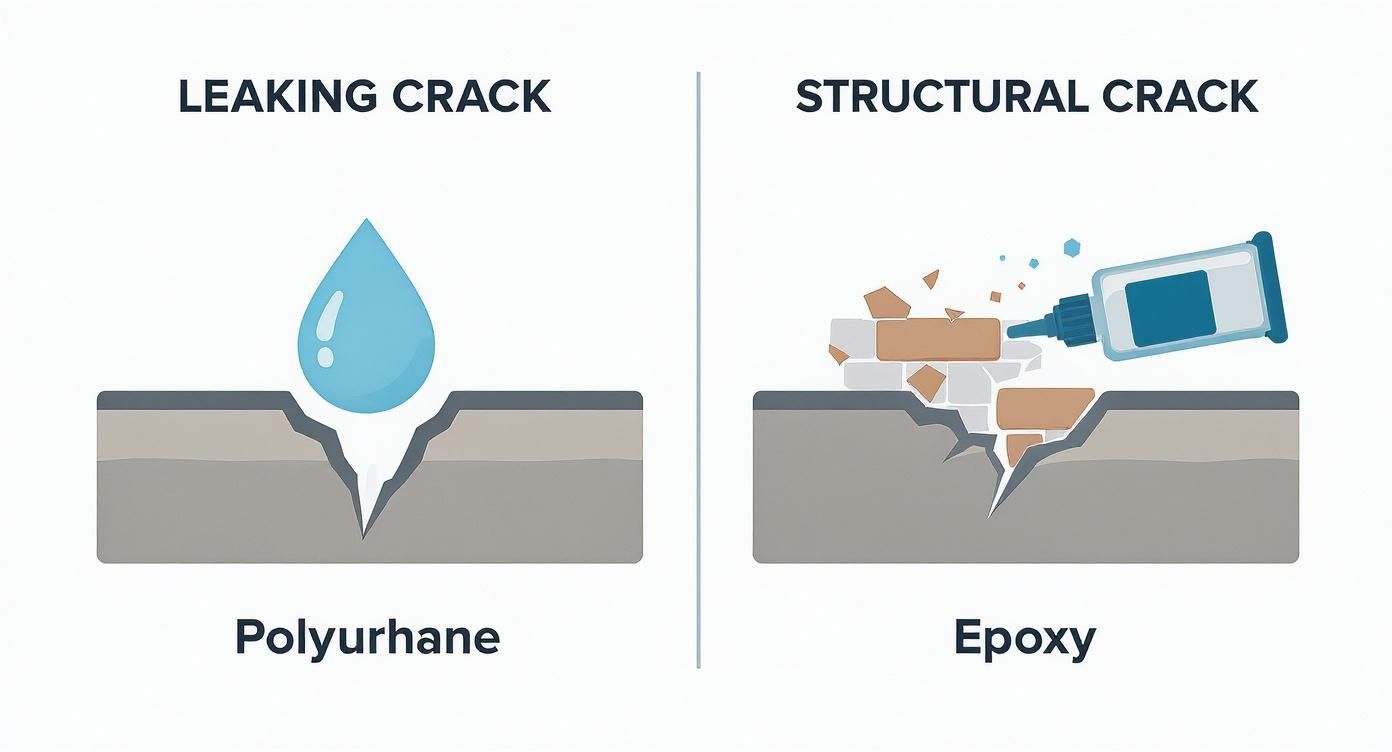

As the infographic shows, the material we choose—either polyurethane or epoxy—is carefully matched to the type of crack we're dealing with.
The key takeaway here is simple: the solution must fit the problem. We use flexible materials for simple leaks and rigid, structural materials when the foundation's integrity is at stake.
Setting the Stage: Installing Ports and Applying the Surface Seal
With the surface prepped, the next step is to install the injection ports. The technician will drill small holes at precise intervals along the crack. These plastic ports act as gateways, allowing us to get the repair material deep inside the foundation wall.
The spacing is key—we usually place them every 8 to 12 inches. This ensures the material can flow freely and fill the entire void from the top of the crack to the bottom.
Next, we apply a thick layer of structural epoxy paste over the entire face of the crack, completely covering the injection ports. This surface seal acts as a temporary dam. Its only job is to create a contained channel that holds the liquid polyurethane or epoxy under pressure inside the crack while it cures.
This surface seal is the unsung hero of the process. If it’s applied too thinly or on a dirty wall, it can blow out during the injection. That’s a huge mess and a failed repair. A true professional ensures this seal is rock-solid before even thinking about injecting.
The Main Event: The Low-Pressure Injection Method
Once everything is prepped and sealed, the real work begins. Using specialized equipment, the technician starts injecting the material into the lowest port on the wall. The technique is all about slow, steady, low pressure. This is a patient process, not a race. Blasting the material in with high pressure can actually damage the foundation.
The technician injects until they see a small amount of material start to seep out of the port directly above the one they're filling. That’s the visual cue that the crack is completely full up to that point.
At that moment, they cap the first port, move up to the next one, and repeat the process all the way up the crack. This methodical, bottom-up approach is the only way to guarantee the crack is sealed through its entire thickness—from inside your basement right through to the soil on the other side. Rushing this step is the most common cause of failure.
Solving the Root Cause of Foundation Cracks
Injecting a foundation crack is an excellent way to stop a leak, but an experienced professional knows the job isn’t over yet. Simply sealing the crack fixes the symptom. If you don't address the underlying cause, you’re just waiting for the next problem to appear. A lasting repair means getting to the bottom of why the wall cracked in the first place and preventing it from happening again.
In the Greater Toronto Area, the number one culprit is almost always water. The clay-heavy soil we have here acts like a giant sponge—it swells when wet and shrinks when dry. When that soil gets saturated, it puts incredible hydrostatic pressure on your foundation walls. Over time, that force is more than enough to make walls bow and crack.
That's why we always investigate what's happening outside your home before we call a job complete. The real, permanent fix comes down to managing the water around your property.
The Critical Role of Water Management

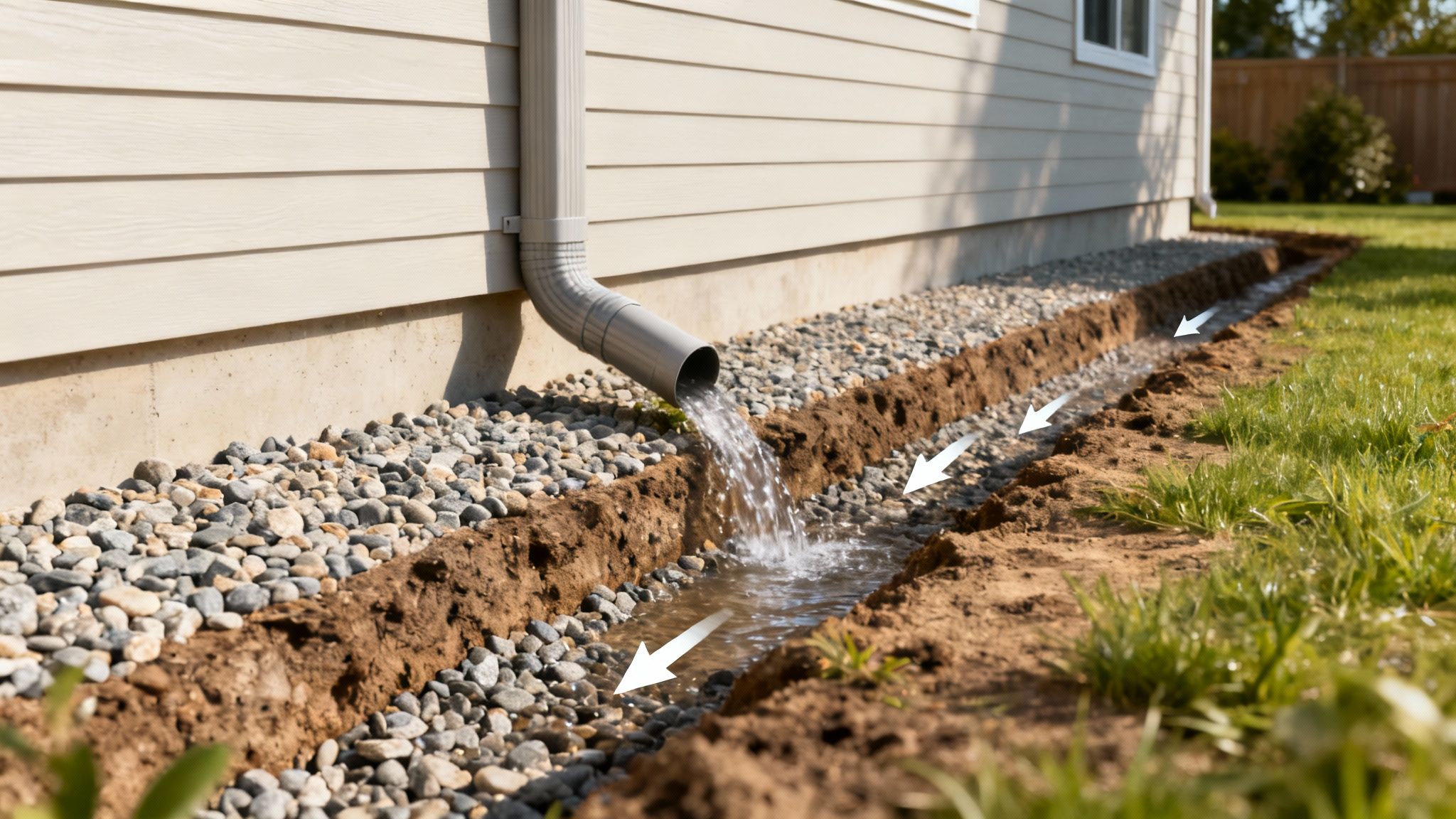

Take a moment to think about where all the rainwater from your roof and yard is going. If the answer is "pooling up against my foundation," you've found your problem. Proper water management is the most important long-term defence for your home's foundation.
We see the same common issues on job sites across Toronto every day. The solution often begins with simple, yet vital, maintenance.
- Clogged Eavestroughs: Gutters packed with leaves can't do their job. Water overflows, pouring down right next to your foundation.
- Poor Downspout Placement: Are your downspouts emptying right beside the house? You might as well have a hose pointed at your foundation, directing thousands of litres of water into the soil exactly where you don't want it.
- Negative Grading: The ground around your house should slope gently away from it. If it slopes towards the house, your foundation becomes the lowest point, collecting rainwater and snowmelt.
Fixing these issues is your first and most powerful line of defence. Extending your downspouts, keeping your eavestroughs clean, and building up the soil to create a positive grade are essential steps.
Protecting Your Foundation Below Ground
Even with perfect surface drainage, the soil deep around your foundation can still become waterlogged. This is where a professional waterproofing system comes in, working behind the scenes to protect your biggest investment.
A complete system is designed to handle water before it ever touches your foundation walls. It usually relies on two key components working together.
First, an exterior waterproofing membrane is applied directly to the foundation walls. This creates a tough, impermeable barrier that physically blocks moisture. The second part of the puzzle is a properly functioning weeping tile system (also called a perimeter drain) installed at the base of your foundation footing.
A weeping tile is more than just a pipe; it's the pressure-release valve for your foundation. It collects groundwater that gathers at the footing and safely carries it away to a sump pump or the city's storm sewer. This relieves the hydrostatic pressure before it can build up and damage your walls.
This combination of blocking water with a membrane and then draining it away is the only way to guarantee a stable, dry basement for the long term. For more complicated drainage issues, other solutions might be necessary. It can be helpful to learn more about what a French drain is and why you might need one to understand all the options for comprehensive water management.
At the end of the day, sealing the crack is just the first step. Solving the water problem is how you truly protect your home.
What Foundation Repair Costs in the GTA
When you first spot a crack in your foundation, the big question is always, "How much is this going to cost?" In the Greater Toronto Area, there's no flat rate for this kind of work. The final quote really comes down to the specific details of the problem in your basement.
A straightforward, non-structural crack that can be sealed with a standard polyurethane injection will be in one price range. But if you're dealing with a wide, structural crack that requires epoxy, or if it's located behind a furnace, the cost will naturally be higher. The extra labour and complexity add up. Of course, the size of the crack itself—its length and width—is a major factor, as it dictates how much material and time are needed.
Why a Cheap Fix is Never a Good Value
It's tempting to jump at the lowest quote you can get. But foundation repair is one of those areas where you truly get what you pay for, and a "bargain" often means you'll be dealing with the same problem again soon.
A quick patch with hydraulic cement might look fixed for a little while, but it's just a temporary fix that will almost certainly fail. The real value comes from a professional repair that offers a permanent, warrantied solution and the peace of mind that comes with it.
Investing in a professional injection isn't just about plugging a hole. It's about protecting your home's value, preventing moisture damage that leads to mould, and ensuring the structural integrity of your biggest asset.
The price of a proper repair is tied directly to its permanence. It's interesting to see how this differs from other regions. For example, repair costs in Los Angeles can swing wildly from $600 to over $17,000, heavily influenced by seismic risks and local soil conditions. While we don't have earthquakes in the GTA, our clay soil and harsh freeze-thaw cycles create their own unique challenges for foundations.
Ultimately, you have to weigh the repair cost against the much higher price of doing nothing. A leaking crack doesn't just go away; it almost always leads to more significant water damage and can eventually require expensive waterproofing work. To get a better sense of what those larger projects might involve, take a look at our guide on the expected cost of basement waterproofing.
Your Foundation Crack Questions, Answered
When you find a crack in your foundation, a dozen questions probably come to mind. It’s completely normal. After years of working with homeowners across Toronto and the GTA, we've heard them all. Here are the straight answers to the ones that come up most often.
Is Hydraulic Cement a Good DIY Fix for a Foundation Crack?
We see this one a lot. People reach for hydraulic cement because it’s known for stopping water, and it seems like an easy fix. The problem is, it’s a temporary one at best.
Hydraulic cement creates a very rigid, brittle patch. But your foundation isn't static; it breathes and moves slightly with the seasonal freeze-thaw cycles we get here in Ontario. That inflexible patch can’t move with the wall, so it eventually cracks again, and you're right back where you started—with a leaky basement.
A professional polyurethane injection, on the other hand, uses a flexible material that bonds to the concrete and moves with it. That’s how you get a permanent, watertight seal.
How Long Does a Professional Crack Repair Actually Take?
Most homeowners are pleasantly surprised by this. For a standard, non-structural crack, a professional injection repair is incredibly efficient and clean. We can typically get the entire job done from inside your basement in just a couple of hours. There's no digging up your garden or heavy machinery involved.
It's a common misconception that all foundation repairs are huge, week-long projects. A proper injection is a targeted, surgical procedure designed to fix the leak with minimal disruption to your home life.
Should I Be Worried About a Tiny Hairline Crack?
This is a great question. Most of the time, a thin, vertical hairline crack is just a result of the concrete curing and settling. On its own, it’s usually not a structural red flag.
However, any crack, no matter the size, is a potential pathway for water, moisture, and even soil gases like radon to get into your basement. The real concern comes if that crack is horizontal, wider than a few millimetres, or you notice it getting longer or wider over time. That’s your cue to call in a professional for an immediate assessment.
If you want a real solution that lasts—not just a temporary fix—it's best to talk to an expert who understands the specific challenges of Toronto’s soil and climate.
At G1000 Home Substructure, we can give you a no-obligation consultation and help you protect your home for good. Learn more and book your free assessment over at https://g1000home.ca.
